Inside Quake: Visible-Surface Determination

by Michael Abrash

Years ago, I was working at Video Seven, a now-vanished video adapter manufacturer, helping to develop a VGA clone.  The fellow who was designing Video Seven’s VGA chip, Tom Wilson, had worked around the clock for months to make his VGA run as fast as possible, and was confident he had pretty much maxed out its performance.  As Tom was putting the finishing touches on his chip design, however, news came fourth-hand that a competitor, Paradise, had juiced up the performance of the clone they were developing, by putting in a FIFO.

That was it; there was no information about what sort of FIFO, or how much it helped, or anything else.  Nonetheless, Tom, normally an affable, laid-back sort, took on the wide-awake, haunted look of a man with too much caffeine in him and no answers to show for it, as he tried to figure out, from hopelessly thin information, what Paradise had done.  Finally, he concluded that Paradise must have put a write FIFO between the system bus and the VGA, so that when the CPU wrote to video memory, the write immediately went into the FIFO, allowing the CPU to keep on processing instead of stalling each time it wrote to display memory.

Tom couldn’t spare the gates or the time to do a full FIFO, but he could implement a one-deep FIFO, allowing the CPU to get one write ahead of the VGA.  He wasn’t sure how well it would work, but it was all he could do, so he put it in and taped out the chip.

The one-deep FIFO turned out to work astonishingly well; for a time, Video Seven’s VGAs were the fastest around, a testament to Tom’s ingenuity and creativity under pressure.  However, the truly remarkable part of this story is that Paradise’s FIFO design turned out to bear not the slightest resemblance to Tom’s, and didn’t work as well.  Paradise had stuck a read FIFO between display memory and the video output stage of the VGA, allowing the video output to read ahead, so that when the CPU wanted to access display memory, pixels could come from the FIFO while the CPU was serviced immediately.  That did indeed help performance--but not as much as Tom’s write FIFO.

What we have here is as neat a parable about the nature of creative design as one could hope to find.  The scrap of news about Paradise’s chip contained almost no actual information, but it forced Tom to push past the limits he had unconsciously set in coming up with his original design.  And, in the end, I think that the single most important element of great design, whether it be hardware or software or any creative endeavor, is precisely what the Paradise news triggered in Tom:  The ability to detect the limits you have built into the way you think about your design, and transcend those limits.

The problem, of course, is how to go about transcending limits you don’t even know you’ve imposed.  There’s no formula for success, but two principles can stand you in good stead:  simplify, and keep on trying new things.

Generally, if you find your code getting more complex, you’re fine-tuning a frozen design, and it’s likely you can get more of a speed-up, with less code, by rethinking the design.  A really good design should bring with it a moment of immense satisfaction in which everything falls into place, and you’re amazed at how little code is needed and how all the boundary cases just work properly.

As for how to rethink the design, do it by pursuing whatever ideas occur to you, no matter how off-the-wall they seem.  Many of the truly brilliant design ideas I’ve heard over the years sounded like nonsense at first, because they didn’t fit my preconceived view of the world.  Often, such ideas are in fact off-the-wall, but just as the news about Paradise’s chip sparked Tom’s imagination, aggressively pursuing seemingly-outlandish ideas can open up new design possibilities for you.

Case in point:  The evolution of Quake’s 3-D graphics engine.

The toughest 3-D challenge of all

I’ve spent most of my waking hours for the last seven months working on Quake, id Software’s successor to DOOM, and after spending the next three months in much the same way, I expect Quake will be out as shareware around the time you read this.

In terms of graphics, Quake is to DOOM as DOOM was to its predecessor, Wolfenstein 3D.  Quake adds true, arbitrary 3-D (you can look up and down, lean, and even fall on your side), detailed lighting and shadows, and 3-D monsters and players in place of DOOM’s sprites.  Sometime soon, I’ll talk about how all that works, but this month I want to talk about what is, in my book, the toughest 3-D problem of all, visible surface determination (drawing the proper surface at each pixel), and its close relative, culling (discarding non-visible polygons as quickly as possible, a way of accelerating visible surface determination).  In the interests of brevity, I’ll use the abbreviation VSD to mean both visible surface determination and culling from now on.

Why do I think VSD is the toughest 3-D challenge?  Although rasterization issues such as texture mapping are fascinating and important, they are tasks of relatively finite scope, and are being moved into hardware as 3-D accelerators appear; also, they only scale with increases in screen resolution, which are relatively modest.

In contrast, VSD is an open-ended problem, and there are dozens of approaches currently in use.  Even more significantly, the performance of VSD, done in an unsophisticated fashion, scales directly with scene complexity, which tends to increase as a square or cube function, so this very rapidly becomes the limiting factor in doing realistic worlds.  I expect VSD increasingly to be the dominant issue in realtime PC 3-D over the next few years, as 3-D worlds become increasingly detailed.  Already, a good-sized Quake level contains on the order of 10,000 polygons, about three times as many polygons as a comparable DOOM level.

The structure of Quake levels

Before diving into VSD, let me note that each Quake level is stored as a single huge 3-D BSP tree.  This BSP tree, like any BSP, subdivides space, in this case along the planes of the polygons.  However, unlike the BSP tree I presented last time, Quake’s BSP tree does not store polygons in the tree nodes, as part of the splitting planes, but rather in the empty (non-solid) leaves, as shown in overhead view in Figure 1.

Image (Asset 1/5) alt=

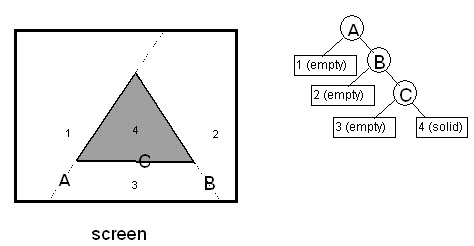

Figure 5: Quake's beam tree was composed of 3-D wedges, or beams, projecting out from the viewpoint to polygon edges.



In John’s design, the beam tree started out consisting of a single beam describing the frustum; everything outside that beam was marked solid (so nothing would draw there), and the inside of the beam was marked empty.  As each new polygon was reached while walking the world BSP tree front to back, that polygon was converted to a beam by running planes from its edges through the viewpoint, and any part of the beam that intersected empty beams in the beam tree was considered drawable and added to the beam tree as a solid beam.  This continued until either there were no more polygons or the beam tree became entirely solid.  Once the beam tree was completed, the visible portions of the polygons that had contributed to the beam tree were drawn.

The advantage to working with a 3-D beam tree, rather than a 2-D region, is that determining which side of a beam plane a polygon vertex is on involves only checking the sign of the dot product of the ray to the vertex and the plane normal, because all beam planes run through the origin (the viewpoint).  Also, because a beam plane is completely described by a single normal, generating a beam from a polygon edge requires only a cross-product of the edge and a ray from the edge to the viewpoint.  Finally, bounding spheres of BSP nodes can be used to do the aforementioned bulk culling to the frustum.

The early-out feature of the beam tree--stopping when the beam tree becomes solid--seems appealing, because it appears to cap worst-case performance.  Unfortunately, there are still scenes where it’s possible to see all the way to the sky or the back wall of the world, so in the worst case, all polygons in the frustum will still have to be tested against the beam tree.  Similar problems can arise from tiny cracks due to numeric precision limitations.  Beam tree clipping is fairly time-consuming, and in scenes with long view distances, such as views across the top of a level, the total cost of beam processing slowed Quake’s frame rate to a crawl.  So, in the end, the beam-tree approach proved to suffer from much the same malady as the painter’s algorithm: The worst case was much worse than the average case, and it didn’t scale well with increasing level complexity.

3-D engine du jour

Once the beam tree was working, John relentlessly worked at speeding up the 3-D engine, always trying to improve the design, rather than tweaking the implementation.  At least once a week, and often every day, he would walk into my office and say “Last night I couldn’t get to sleep, so I was thinking...” and I’d know that I was about to get my mind stretched yet again.  John tried many ways to improve the beam tree, with some success, but more interesting was the profusion of wildly different approaches that he generated, some of which were merely discussed, others of which were implemented in overnight or weekend-long bursts of coding, in both cases ultimately discarded or further evolved when they turned out not to meet the design criteria well enough.  Here are some of those approaches, presented in minimal detail in the hopes that, like Tom Wilson with the Paradise FIFO, your imagination will be sparked.

Subdividing raycast:  Rays are cast in an 8x8 screen-pixel grid; this is a highly efficient operation because the first intersection with a surface can be found by simply clipping the ray into the BSP tree, starting at the viewpoint, until a solid leaf is reached.  If adjacent rays don’t hit the same surface, then a ray is cast halfway between, and so on until all adjacent rays either hit the same surface or are on adjacent pixels; then the block around each ray is drawn from the polygon that was hit.  This scales very well, being limited by the number of pixels, with no overdraw.  The problem is dropouts; it’s quite possible for small polygons to fall between rays and vanish.

Vertex-free surfaces:  The world is represented by a set of surface planes.  The polygons are implicit in the plane intersections, and are extracted from the planes as a final step before drawing.  This makes for fast clipping and a very small data set (planes are far more compact than polygons), but it’s time-consuming to extract polygons from planes.

Draw-buffer:  Like a z-buffer, but with 1 bit per pixel, indicating whether the pixel has been drawn yet.  This eliminates overdraw, but at the cost of an inner-loop buffer test, extra writes and cache misses, and, worst of all, considerable complexity.  Variations are testing the draw-buffer a byte at a time and completely skipping fully-occluded bytes, or branching off each draw-buffer byte to one of 256 unrolled inner loops for drawing 0-8 pixels, in the process possibly taking advantage of the ability of the x86 to do the perspective floating-point divide in parallel while 8 pixels are processed.

Span-based drawing:  Polygons are rasterized into spans, which are added to a global span list and clipped against that list so that only the nearest span at each pixel remains.  Little sorting is needed with front-to-back walking, because if there’s any overlap, the span already in the list is nearer.  This eliminates overdraw, but at the cost of a lot of span arithmetic; also, every polygon still has to be turned into spans.

Portals:  the holes where polygons are missing on surfaces are tracked, because it’s only through such portals that line-of-sight can extend.  Drawing goes front-to-back, and when a portal is encountered, polygons and portals behind it are clipped to its limits, until no polygons or portals remain visible.  Applied recursively, this allows drawing only the visible portions of visible polygons, but at the cost of a considerable amount of portal clipping.

Breakthrough

In the end, John decided that the beam tree was a sort of second-order structure, reflecting information already implicitly contained in the world BSP tree, so he tackled the problem of extracting visibility information directly from the world BSP tree.  He spent a week on this, as a byproduct devising a perfect DOOM (2-D) visibility architecture, whereby a single, linear walk of a DOOM BSP tree produces zero-overdraw 2-D visibility.  Doing the same in 3-D turned out to be a much more complex problem, though, and by the end of the week John was frustrated by the increasing complexity and persistent glitches in the visibility code.  Although the direct-BSP approach was getting closer to working, it was taking more and more tweaking, and a simple, clean design didn’t seem to be falling out.  When I left work one Friday, John was preparing to try to get the direct-BSP approach working properly over the weekend.

When I came in on Monday, John had the look of a man who had broken through to the other side--and also the look of a man who hadn’t had much sleep.  He had worked all weekend on the direct-BSP approach, and had gotten it working reasonably well, with insights into how to finish it off.  At 3:30 AM Monday morning, as he lay in bed, thinking about portals, he thought of precalculating and storing in each leaf a list of all leaves visible from that leaf, and then at runtime just drawing the visible leaves back-to-front for whatever leaf the viewpoint happens to be in, ignoring all other leaves entirely.

Size was a concern; initially, a raw, uncompressed potentially visible set (PVS) was several megabytes in size.  However, the PVS could be stored as a bit vector, with 1 bit per leaf, a structure that shrunk a great deal with simple zero-byte compression.  Those steps, along with changing the BSP heuristic to generate fewer leaves (contrary to what I said a few months back, choosing as the next splitter the polygon that splits the fewest other polygons is clearly the best heuristic, based on the latest data) and sealing the outside of the levels so the BSPer can remove the outside surfaces, which can never be seen, eventually brought the PVS down to about 20 Kb for a good-size level.

In exchange for that 20 Kb, culling leaves outside the frustum is speeded up (because only leaves in the PVS are considered), and culling inside the frustum costs nothing more than a little overdraw (the PVS for a leaf includes all leaves visible from anywhere in the leaf, so some overdraw, typically on the order of 50% but ranging up to 150%, generally occurs).  Better yet, precalculating the PVS results in a leveling of performance; worst case is no longer much worse than best case, because there’s no longer extra VSD processing--just more polygons and perhaps some extra overdraw--associated with complex scenes.  The first time John showed me his working prototype, I went to the most complex scene I knew of, a place where the frame rate used to grind down into the single digits, and spun around smoothly, with no perceptible slowdown.

John says precalculating the PVS was a logical evolution of the approaches he had been considering, that there was no moment when he said “Eureka!”.  Nonetheless, it was clearly a breakthrough to a brand-new, superior design, a design that, together with a still-in-development sorted-edge rasterizer that completely eliminates overdraw, comes remarkably close to meeting the “perfect-world” specifications we laid out at the start.

Simplify, and keep on trying new things

What does it all mean?  Exactly what I said up front:  Simplify, and keep trying new things.  The precalculated PVS is simpler than any of the other schemes that had been considered (although precalculating the PVS is an interesting task that I’ll discuss another time).  In fact, at runtime the precalculated PVS is just a constrained version of the painter’s algorithm.  Does that mean it’s not particularly profound?

Not at all.  All really great designs seem simple and even obvious--once they’ve been designed.  But the process of getting there requires incredible persistence, and a willingness to try lots of different ideas until the right one falls into place, as happened here.

My friend Chris Hecker has a theory that all approaches work out to the same thing in the end, since they all reflect the same underlying state and functionality.  In terms of underlying theory, I’ve found that to be true; whether you do perspective texture mapping with a divide or with incremental hyperbolic calculations, the numbers do exactly the same thing.  When it comes to implementation, however, my experience is that simply time-shifting an approach, or matching hardware capabilities better, or caching can make an astonishing difference.  My friend Terje Mathisen likes to say that “almost all programming can be viewed as an exercise in caching,” and that’s exactly what John did.  No matter how fast he made his VSD calculations, they could never be as fast as precalculating and looking up the visibility, and his most inspired move was to yank himself out of the “faster code” mindset and realize that it was in fact possible to precalculate (in effect, cache) and look up the PVS.

The hardest thing in the world is to step outside a familiar, pretty good solution to a difficult problem and look for a different, better solution.  The best ways I know to do that are to keep trying new, wacky things, and always, always, always try to simplify.  One of John’s goals is to have fewer lines of code in each 3-D game than in the previous game, on the assumption that as he learns more, he should be able to do things better with less code.

So far, it seems to have worked out pretty well for him.

Learn now, pay forward

There’s one other thing I’d like to mention before I close up shop for this month.  As far back as I can remember, DDJ has epitomized the attitude that sharing programming information is A Good Thing.  I know a lot of programmers who were able to leap ahead in their development because of Hendrix’s Tiny C, or Stevens’ D-Flat, or simply by browsing through DDJ’s annual collections.  (Me, for one.)  Most companies understandably view sharing information in a very different way, as potential profit lost--but that’s what makes DDJ so valuable to the programming community.

It is in that spirit that id Software is allowing me to describe in these pages how Quake works, even before Quake has shipped.  That’s also why id has placed the full source code for Wolfenstein 3D on ftp.idsoftware.com/idstuff/source; you can’t just recompile the code and sell it, but you can learn how a full-blown, successful game works; check wolfsrc.txt in the above-mentioned directory for details on how the code may be used.

So remember, when it’s legally possible, sharing information benefits us all in the long run.  You can pay forward the debt for the information you gain here and elsewhere by sharing what you know whenever you can, by writing an article or book or posting on the Net.  None of us learns in a vacuum; we all stand on the shoulders of giants such as Wirth and Knuth and thousands of others.  Lend your shoulders to building the future!

References

Foley, James D., et al., Computer Graphics:  Principles and Practice, Addison Wesley, 1990, ISBN 0-201-12110-7 (beams, BSP trees, VSD).

Teller, Seth, Visibility Computations in Densely Occluded Polyhedral Environments (dissertation), available on

http://theory.lcs.mit.edu/~seth/

along with several other papers relevant to visibility determination.

Teller, Seth, Visibility Preprocessing for Interactive Walkthroughs, SIGGRAPH 91 proceedings, pp. 61-69.
